Old February 12th, 2008   #101
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road

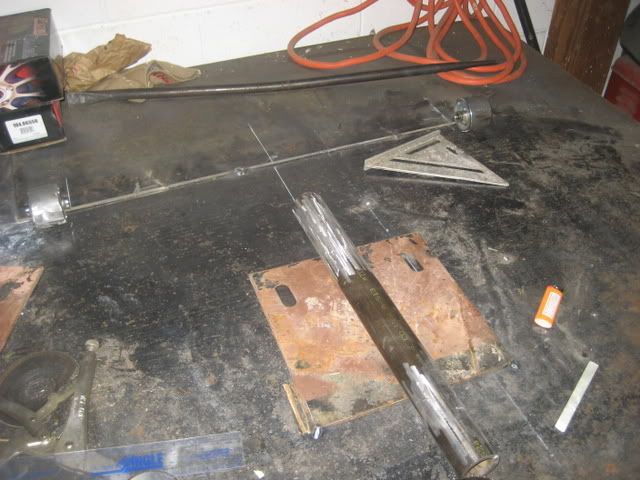

Made some templates for the rear axle brackets. Used some sheetmetal cause I didnt feel like goin into the house to find sissors. The sheet metal worked killer.



I'll of course add some gussets, ethier with 1.5 dom or some plate. probably the dom. Also gonna back it with some plate.

brackets for the lowers



Now I either have to start torching and grinding or bring them to somone with a table!
separation is about 12" at the frame its gonna be about 6"

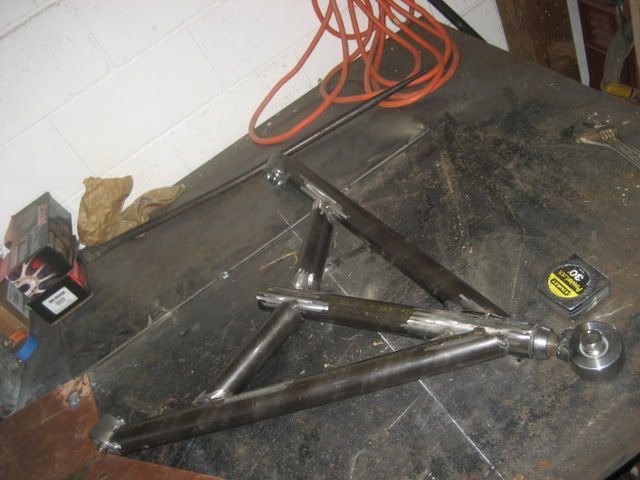

Im thinkin the lower links will be around 43" the wish bone will be around 34"
One end the links will be adjustable about 2 1/2". Wheel base around 116"
The front lowers will be around 43" as well with some adjustment. First time doing this. Havent used the triad calculator but this looks like it might work. Any thoughts will help. Thanks!
wix is offline   Reply With Quote

Old February 12th, 2008   #102
jeeper89
WEB WHEELING SAVES MONEY!!!

jeeper89's Avatar

Join Date: 05 Aug 2006
Posts: 3,326
jeeper89 is on a distinguished road

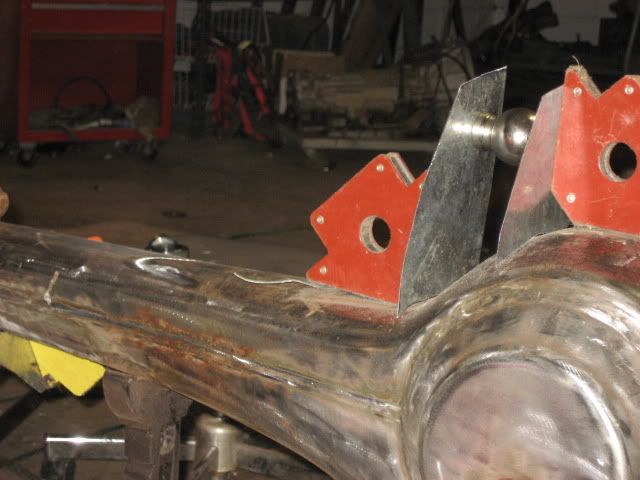

on the welding pause more on the edges(red dots) and go a little faster on the lines and it will make your weld smoother and better.
__________________
"LEAF SPRINGS= BOUNCING BOOBS... I LOVE LEAF SPRINGS"
Eat well, stay fit, die anyway.
jeeper89 is offline   Reply With Quote

Old February 12th, 2008   #103
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by jeeper89 View Post
on the welding pause more on the edges(red dots) and go a little faster on the lines and it will make your weld smoother and better.
Ya if was stick or flux core I would for sure do that. I was certified with 7018, learned how to use that. Havet learned shit with mig just what Ive read and what Ive read is a striaght pass is the way to go. But Ive seen lots of guys with mig do there own shit and it all seems to hold?
wix is offline   Reply With Quote

Old February 13th, 2008   #104
jeeper89
WEB WHEELING SAVES MONEY!!!

jeeper89's Avatar

Join Date: 05 Aug 2006
Posts: 3,326
jeeper89 is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
Ya if was stick or flux core I would for sure do that. I was certified with 7018, learned how to use that. Havet learned shit with mig just what Ive read and what Ive read is a striaght pass is the way to go. But Ive seen lots of guys with mig do there own shit and it all seems to hold?
when i did my cert for mig at the school i was told by one teacher to do the sweep and by one to do one slower straight pass.. they both hold good i think its more just looks. but if most of your weld is in the middle of the weld joint then the edges are the weaker point?
__________________
"LEAF SPRINGS= BOUNCING BOOBS... I LOVE LEAF SPRINGS"
Eat well, stay fit, die anyway.
jeeper89 is offline   Reply With Quote

Old February 13th, 2008   #105
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by jeeper89 View Post
when i did my cert for mig at the school i was told by one teacher to do the sweep and by one to do one slower straight pass.. they both hold good i think its more just looks. but if most of your weld is in the middle of the weld joint then the edges are the weaker point?
Ya makes sense. But what I need is feed back about the links!
wix is offline   Reply With Quote

Old February 13th, 2008   #106
jeeper89
WEB WHEELING SAVES MONEY!!!

jeeper89's Avatar

Join Date: 05 Aug 2006
Posts: 3,326
jeeper89 is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
Ya makes sense. But what I need is feed back about the links!
there i have no clue..:frown::redface: wish i knew.
__________________
"LEAF SPRINGS= BOUNCING BOOBS... I LOVE LEAF SPRINGS"
Eat well, stay fit, die anyway.
jeeper89 is offline   Reply With Quote

Old February 13th, 2008   #107
redneck6
Wheeler

Join Date: 20 Mar 2007
Posts: 194
redneck6 is on a distinguished road
looking good mine aspiers to be like yours when it grows up.
__________________
http://therockgods.com/forum/showthr...3321#post83321

my great bulid thread.

Train Hard Fight Easy .
redneck6 is offline   Reply With Quote

Old February 16th, 2008   #108
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,979
MR.ROCKAPE is on a distinguished road
how close are the upper brackets goona be??Also are you triangulating the lowers or just going to the chassis!!!!we need the whole picture...triangulation is your friend!!!
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old February 16th, 2008   #109
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
how close are the upper brackets goona be??Also are you triangulating the lowers or just going to the chassis!!!!we need the whole picture...triangulation is your friend!!!
Upper brackets are gonna be on the frame, I think its about 42" outsided-soutside. Gonna be hard to triangulate the lowers since the polyper brackets I got to mount to the bottom of the frame, And the cast on the mogs starts right at 43". Would it work to have the lowers on the axle about 35-40"? and 42" on the frame? (all measurements are outside) Also the frame mounts on the upper trilink will be about 10" behind the frame mounts for the lowers?
wix is offline   Reply With Quote

Old February 16th, 2008   #110
Dnmeistr
Wheeler

Join Date: 05 Aug 2006
Posts: 346
Dnmeistr is on a distinguished road
Any bit of triangulation on the lowers is good even if it is just a few degrees, it helps to reduce rear stear. Also what helps is to keep the lowers as flat as possible. Have you played with the 4 link calculator on pirate.
__________________
1990 YJ
Dnmeistr is offline   Reply With Quote

Old February 16th, 2008   #111
jeeper89
WEB WHEELING SAVES MONEY!!!

jeeper89's Avatar

Join Date: 05 Aug 2006
Posts: 3,326
jeeper89 is on a distinguished road
Quote:
Originally Posted by Dnmeistr View Post
Any bit of triangulation on the lowers is good even if it is just a few degrees, it helps to reduce rear stear. Also what helps is to keep the lowers as flat as possible. Have you played with the 4 link calculator on pirate.
i had that on my computer and i lost it.. anyone have a link to it?
__________________
"LEAF SPRINGS= BOUNCING BOOBS... I LOVE LEAF SPRINGS"
Eat well, stay fit, die anyway.
jeeper89 is offline   Reply With Quote

Old February 16th, 2008   #112
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by jeeper89 View Post
i had that on my computer and i lost it.. anyone have a link to it?
SEARCH YOU FUCKING NEWB

If you search Triaged or 4 link calculator should be easy to find. Ive messed with it but it makes me brain hurt..
wix is offline   Reply With Quote

Old February 16th, 2008   #113
jeeper89
WEB WHEELING SAVES MONEY!!!

jeeper89's Avatar

Join Date: 05 Aug 2006
Posts: 3,326
jeeper89 is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
SEARCH YOU FUCKING NEWB

If you search Triaged or 4 link calculator should be easy to find. Ive messed with it but it makes me brain hurt..
why search when i can have other search for me...
__________________
"LEAF SPRINGS= BOUNCING BOOBS... I LOVE LEAF SPRINGS"
Eat well, stay fit, die anyway.
jeeper89 is offline   Reply With Quote

Old February 16th, 2008   #114
Dnmeistr
Wheeler

Join Date: 05 Aug 2006
Posts: 346
Dnmeistr is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
Ive messed with it but it makes me brain hurt..
Heck if you can figure out how to bend tube you should have no problem with the calculator
__________________
1990 YJ
Dnmeistr is offline   Reply With Quote

Old March 11th, 2008   #115
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road

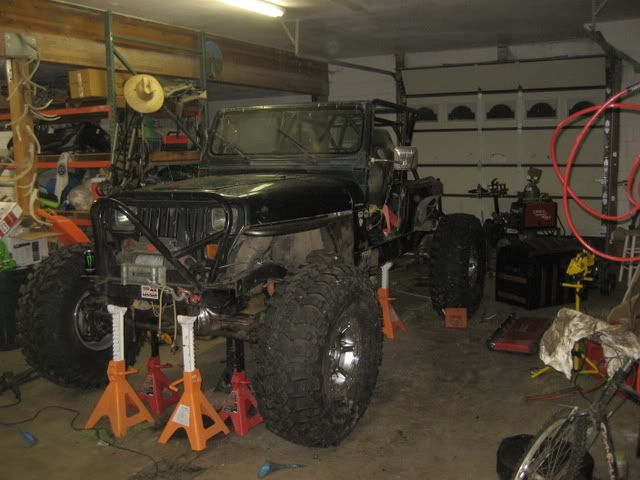

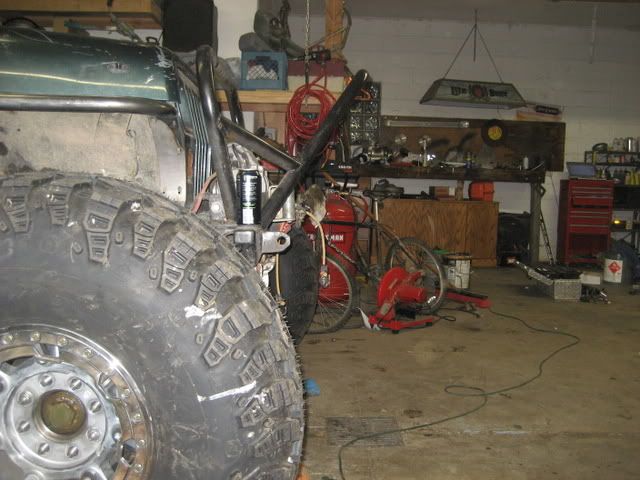

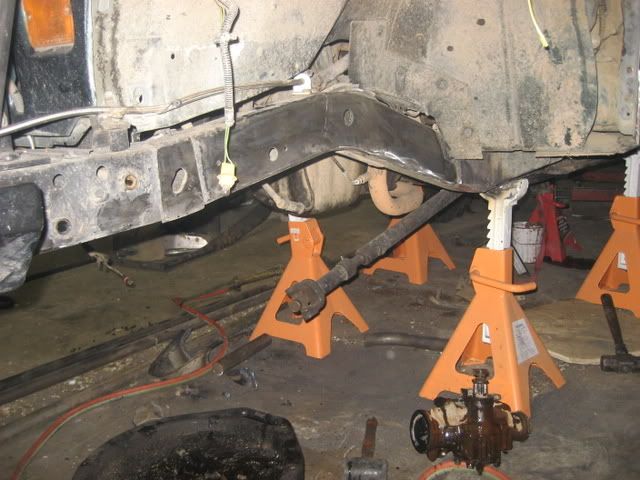

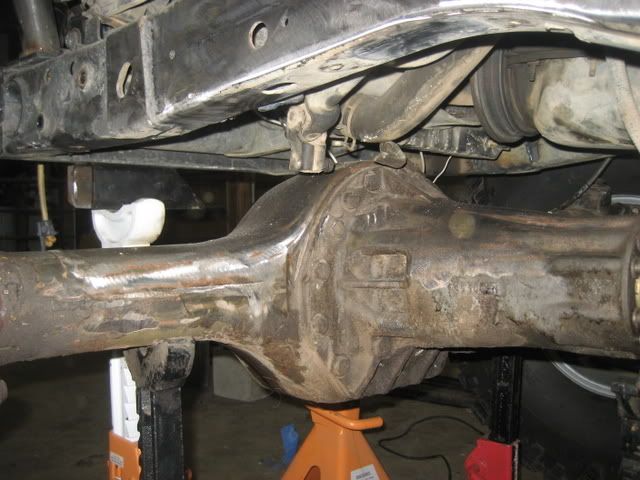

Been workin on this as much as I can which is isnt very often. I almost got the front axle ready to go. I just need to get on portal box pressed off. My little press wont cut it. I think Ill bring it to a shop tomarrow. I also got the rear axle in place. It was a pita doing it by myself. One heavy mofo.

Can you put a 5 gallon bucket under your axle with plenty of room to spare? Also got the new rear section welded in.

Been workin on the frame too. Got all the old brackets melted off and grinded smooth.
wix is offline   Reply With Quote

Old March 11th, 2008   #116
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
Move that rear back just a tad so your tires stick out further than the body. Make for good approach angles
Sierra Valley is offline   Reply With Quote

Old March 11th, 2008   #117
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by Sierra Valley View Post
Move that rear back just a tad so your tires stick out further than the body. Make for good approach angles
That would be cool if I drove around in reverse all day! I think you meant departure. And its back plenty far enough, I guess its a bad angle in that picture. Maybe you should see it in real life.
wix is offline   Reply With Quote

Old March 17th, 2008   #118
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
UPDATE WITH NO PICTURES!

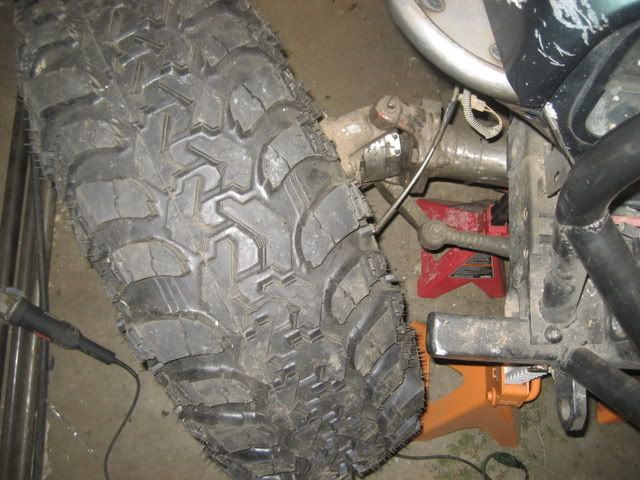

Sorry no pictures, put I pretty much got the front axle all ready and should have it under the jeep by tomarrow night. Got the rest of the beadlocks all mounted up, and learned to make sure you have the valve stems in before putting the bead locks on. :mad: Good thing my son has small hands. I should be able to start linking it up towards the end of the week.
I started to list all the stuff left to do and the list isnt small...mount shocks, mount steering, pinion conv. d-lines, fuel cell/lines, brake lines, upgrade brake MC, paint...
wix is offline   Reply With Quote

Old March 17th, 2008   #119
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,979
MR.ROCKAPE is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
UPDATE WITH NO PICTURES!

Sorry no pictures, put I pretty much got the front axle all ready and should have it under the jeep by tomarrow night. Got the rest of the beadlocks all mounted up, and learned to make sure you have the valve stems in before putting the bead locks on. :mad: Good thing my son has small hands. I should be able to start linking it up towards the end of the week.
I started to list all the stuff left to do and the list isnt small...mount shocks, mount steering, pinion conv. d-lines, fuel cell/lines, brake lines, upgrade brake MC, paint...
SWEET SHOW US THE PICS OF YOUR MOUNTED SHOCKS....
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old March 17th, 2008   #120
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
SWEET SHOW US THE PICS OF YOUR MOUNTED SHOCKS....
Have some faith! I got a tracking # now! should see some of stuff tomarrow...
wix is offline   Reply With Quote

Old March 19th, 2008   #121
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road

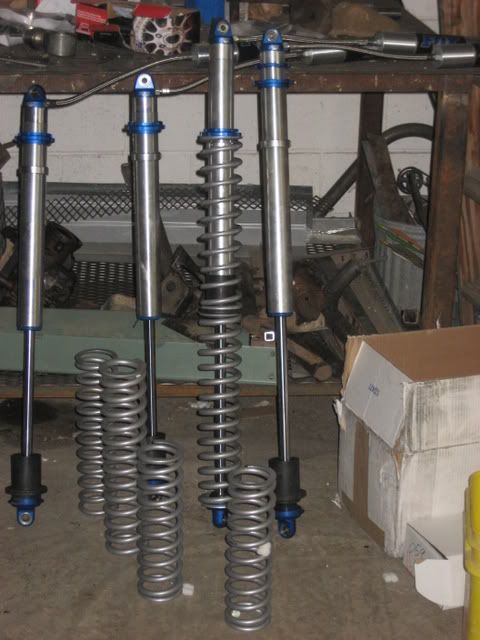

GOT A PACKAGE TODAY.
half of the shocks. Hey its a start...
wix is offline   Reply With Quote

Old March 19th, 2008   #122
xjmoser
I wish I was as cool as Big Blue!

xjmoser's Avatar

Join Date: 05 Aug 2006
Posts: 793
xjmoser is on a distinguished road
Nice package!
__________________
FUCK YOU IF YA CANT TAKE A JOKE!!!!!



Quote:
Originally Posted by MR.ROCKAPE View Post

XJ MOSER IS A FLAKE!!!!:mad:
Quote:
Originally Posted by JOE THE TOE View Post
BY THE WAY XJMOSER'S RIG IS PRETTY SWEET & AT LEAST HE SHOWED UP .....B!TCHES! :blahblah: :blahblah: :blahblah: :yup:
xjmoser is offline   Reply With Quote

Old March 19th, 2008   #123
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by xjmoser View Post
Nice package!
I knew it was gonna be a nice one just by the size of it.
wix is offline   Reply With Quote

Old March 19th, 2008   #124
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,979
MR.ROCKAPE is on a distinguished road
DAMN THOSE ARE BLING!!!!AT LEAST IT WILL RIDE NICE!!!!
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old March 19th, 2008   #125
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Threw one together.
Shocks are 16" travel
coils are: 14" .0200 and 16" .0300
Put the .0200 on the bottom and the .0300 on the body end.
Dont know much about them but I started reading the coil over bible on pirate. One thing is they are long! Ill probably have to mount them to the top of the cage!
wix is offline   Reply With Quote

Old March 20th, 2008   #126
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
Go through the hood on the front, makes for a nice aggressive look. Whens the rest of the bling coming in?
Sierra Valley is offline   Reply With Quote

Old March 20th, 2008   #127
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by Sierra Valley View Post
Go through the hood on the front, makes for a nice aggressive look. Whens the rest of the bling coming in?
I'll run them through the hood if it is necessary. The rest should be here in about another 4 months Im guessing.
wix is offline   Reply With Quote

Old March 20th, 2008   #128
jeeper89
WEB WHEELING SAVES MONEY!!!

jeeper89's Avatar

Join Date: 05 Aug 2006
Posts: 3,326
jeeper89 is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
I'll run them through the hood if it is necessary. The rest should be here in about another 4 months Im guessing.
i orderd my shocks yesterday.. and got them today
__________________
"LEAF SPRINGS= BOUNCING BOOBS... I LOVE LEAF SPRINGS"
Eat well, stay fit, die anyway.
jeeper89 is offline   Reply With Quote

Old March 28th, 2008   #129
izzy
Wheeler

Join Date: 05 Aug 2006
Age: 30
Posts: 26
izzy is on a distinguished road
come awn!!! any new updates???
__________________
Cherokee, f/r coilovers, 38's, dana 60, 44, full cage, soon to have an atlas......still work in progress
izzy is offline   Reply With Quote

Old March 28th, 2008   #130
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Been on Vaction with the family, got back last night. Gonna do some work tomarrow. And maybe Ill give shaffer a call to see where the rest of the parts are???
wix is offline   Reply With Quote

Old March 28th, 2008   #131
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
Been on Vaction with the family, got back last night. Gonna do some work tomarrow. And maybe Ill give shaffer a call to see where the rest of the parts are???
Just called mike, He told me to open my eyes. My front shocks got delieverd yesterday and were sitting in the front entrance of our office.
wix is offline   Reply With Quote

Old March 28th, 2008   #132
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
No more excuses then, get after it.
Sierra Valley is offline   Reply With Quote

Old March 29th, 2008   #133
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Got some stuff done today.
Finished gettin the front axle together and got it under the jeep. The mogs are pretty heavy...Im gonna try and use the stock steering arms and tie-rod. It sits in back of the axle, so I fliped it around. The tie-rod will be in the front and Ill try to mount the single ended ram in the back.


One steering arm has a back end where I think I might be able to mount the ram too. I need to move it to the passenger side though...
More pics.

Just barely clears the front bumper.

Got 1 1/2" of clearance to the radiator hose. The front axle is sitting on jacks, tires are 1" off the ground. I think I'll only need to raise it another 2 inches? total about 4 1/2" of clearance from top of pumpkin to radiator, think it's enough??

Approach

Departure


wix is offline   Reply With Quote

Old March 30th, 2008   #134
Robicon
Why is all the rum gone?

Robicon's Avatar

Join Date: 05 Oct 2007
Age: 48
Posts: 621
Robicon is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
Got 1 1/2" of clearance to the radiator hose. The front axle is sitting on jacks, tires are 1" off the ground. I think I'll only need to raise it another 2 inches? total about 4 1/2" of clearance from top of pumpkin to radiator, think it's
I thinks it's more than PJ has, his sits on the bump stops
__________________
Off-road Driving Instructor
Recovery Dude at KOH 2010-2012
(Would have been until 2013, but MasterPull pulled out (eek) and I'm not gonna work that hard for free :D )
Robicon is offline   Reply With Quote

Old March 30th, 2008   #135
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Where I think it will end up.
WB 115"
Height" 83"
width 89"
Belly 27"

One more pic.
wix is offline   Reply With Quote

Old March 30th, 2008   #136
Robicon
Why is all the rum gone?

Robicon's Avatar

Join Date: 05 Oct 2007
Age: 48
Posts: 621
Robicon is on a distinguished road
Quote:
Originally Posted by wixjp1 View Post
Where I think it will end up.
WB 115"
Height" 83"
width 89"
Belly 27"
Cool rig.
89" is 3" more tha a HMMWV, and it's a wide bitch Have fun
__________________
Off-road Driving Instructor
Recovery Dude at KOH 2010-2012
(Would have been until 2013, but MasterPull pulled out (eek) and I'm not gonna work that hard for free :D )
Robicon is offline   Reply With Quote

Old March 30th, 2008   #137
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by Robicon View Post
Cool rig.
89" is 3" more tha a HMMWV, and it's a wide bitch Have fun
Thanks,
The disc brake conv. bumped me out a coulpe inches plus the 14.5 wide tires. Oh well what I cant fit through I'lll just drive over
wix is offline   Reply With Quote

Old March 30th, 2008   #138
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
And the rest of the shocks!
wix is offline   Reply With Quote

Old March 30th, 2008   #139
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,979
MR.ROCKAPE is on a distinguished road
just remember your shocks need to either limit your total uptravel or you are throwing away all that shock you paid for.....

When I re-do the two seater I am planning for 20" under the belly but with 6 inches of uptravel front and rear!!!!The plus for me is that the chassis is already stepped to accomodate it!!!

You need to get your chassis at ride height,axles under it on the tires and then mock your shocks in so you know where the shock mounts need to be!!!Im thinking those super travel shocks are gonna end up through the floor and hood!!!

And...you may end up C-notching your frame to be able to fit a panhard and still have uptravel in the front!!!
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old March 30th, 2008   #140
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
I like the stance on it. Gonna be a wide mo fo.
Sierra Valley is offline   Reply With Quote

Old March 30th, 2008   #141
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
just remember your shocks need to either limit your total uptravel or you are throwing away all that shock you paid for.....

When I re-do the two seater I am planning for 20" under the belly but with 6 inches of uptravel front and rear!!!!The plus for me is that the chassis is already stepped to accomodate it!!!

You need to get your chassis at ride height,axles under it on the tires and then mock your shocks in so you know where the shock mounts need to be!!!Im thinking those super travel shocks are gonna end up through the floor and hood!!!

And...you may end up C-notching your frame to be able to fit a panhard and still have uptravel in the front!!!
I read somwhere on pirate that you can mount the shocks at full stuff. There is a formula for each shock, for like a 14 in you mount the shock brackets about 23" apart. Then you just need to hope you have the the right coils for the up and down travel you want... I need to find that thread and read up on it again.
And yeah they will be through the hood and in the back they will go through the rear wheel wells and tie in about 10" above the tub to the cage.
Was messing with the link calc. and got this
FRONT:
anti squat 94.29%
Roll axis angle 7.46
Roll center Height 30.52
instant center x axis 147.23
Instant center z axis 41.04

36" upper length
40" lower length

Does the upper link need to go the driver side frame? and attach near center line of axle? and does panhard need to attach to the frame on passenger side and axle on driver side? Im pretty sure it does just want to confirm, and would like to put the upper on the passenger side (frame)

REAR:
anti squat 95%
Roll center height 31 Roll axis angle 8
instant center x axis 132
instant center z axis 39

upper length 32"
lower length 43"

Last edited by wix; March 30th, 2008 at 11:39 AM..
wix is offline   Reply With Quote

Old March 30th, 2008   #142
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,979
MR.ROCKAPE is on a distinguished road
SINCE YOU ARE GONNA GO SINGLE UPPER LINK YOU CAN PUT IT WHERE YOU WANT...(THOUGH IT MIGHT HAVE SOME ODD STREET HANDLING WHEN BRAKEING OR ACCELERATING...)

IF YOU LOOK AT LO-BUDGET,THE UPPER LINK IS STRAIGHT,NOT ANGLED AT ALL(I BELIEVE THAT CAUSES A BIND WITH THE PANHARD IF YOU DO ANGLE THEM...)LOWERS ARE SLIGHTLY ANGLED SO THE FRONT TIRES DONT RUB,WHEN TURNING....

SINCE LO-BUDGET WORKS WELL I PLAN TO DO IT JUST LIKE THAT AGAIN(UPPER LINK AND PANHARD BOTH MOUNT ON THE DRIVERS SIDE OF THE CHASSIS)

AND AS FAR AS YOUR #S GO.....THEY ARE REALLY HARD TO APPLY TO A MOG....THE TWIST THOSE PORTAL BOXES PUT ON THE HOUSING HAS GOT TO HAVE SOME EFFECT ON WHERE THEY ACTUALLY TRY TO ROTATE THE HOUSING AND LINK PLACEMENT....IT WOULD BE LIKE USING THE SAME PLACES ON A DANA70...THE LOWER LINKS WOULD MOUNT ON TOP OF THE TUBES AND THE UPPER LINK TOWER WOULD BE 2 FEET TALL......I BELIEVE IT HAS TO HAVE SOME EFFECT!!!(I COULD BE WRONG AS I AM KNOWN AS A MOG HATER....)
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old March 30th, 2008   #143
colonelmustard
Wheeler

Join Date: 02 Apr 2007
Posts: 354
colonelmustard is on a distinguished road
rig is looking sweet.

you're definitely going want those shocks mounted up high, I wish I had mounted them higher on mine, and they're up thru the hood. 5-6 inches of uptravel to full bumpstop compression will make the highspeed stuff softer. Mine are like 5" up in rear, 6"+ up in front to full bumpstop compress with less than a inch shaft left on the shocks. I wish I had mounted the coilovers higher on my hoops to allow for more shaft at full bump and more uptravel when flexed out. the tires only move up like 6", and drop like 10". It seems to work well enough and is pretty stable, but more uptravel at the corners would even be better.
__________________
MCCARTHY MOTORSPORTS ...git er done!
colonelmustard is offline   Reply With Quote

Old April 4th, 2008   #144
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
I decided to go without any triangulation in the rear lowers. It will go together a lot easier. Ill just be aware of it and if its real bad Ill have to change it.

I put together all my lowers. Need to weld up the tube adapter just contemplating stuffing some 1.5 inch .120 wall into them. Any thoughts?

If you dont own a notcher, WHY THE FAWK NOT???? Doing 4 .250 wall took about 10 minutes.







I need to have somone make me some brackets for the axle end
Tomarrow Im gonna work on the rear upper wish bone. should be able to get it done and mounted. Also did some reading up the coil overs. Pretty easy, just discharge them, measure distance (eye to eye) put your mounts that far apart at full stuff. Then slap the coils on, mount the shock charge em up to where you need to be. Just gotta hope I got the right size coils.
wix is offline   Reply With Quote

Old April 5th, 2008   #145
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
Glad your getting some more progress going on this. Did you get your steering from Shaffer yet?
Sierra Valley is offline   Reply With Quote

Old April 5th, 2008   #146
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by Sierra Valley View Post
Glad your getting some more progress going on this. Did you get your steering from Shaffer yet?
Nope, also missing 2 front coils. Gonna need it all real soon, Ill give him a cal monday. Then Ill probably get it by the end of the week. Seems thats all it takes (though it shouldnt) is a call.
wix is offline   Reply With Quote

Old April 6th, 2008   #147
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Well I worked on the rear wish bone yesterday. Took about six hours, came out real nice. The notches were good and everything fit real tight.

The only problem was I didnt measure twice and cut once :14:...I got the inside measurement and got going to fast and for some reason I thought it was the outside measurement...Anyway it was off by about four inches so I guess it was just good practice. Good thing I just tacked everything. Thats what happens at 12:30am I guess. Was pretty pissed. :mad::07:
wix is offline   Reply With Quote

Old April 7th, 2008   #148
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Got it right this time Took about half the time too, and used up most of the peices of tube from the 1st one.


I laid it all out on my welding table. I used a piece of 1/4" plate for a flat edge. Marked where the brackets would be (on the frame) on the flat edge and then I tacked the joints to the flat edge where they would be on the frame. Then I laid out the center tube and tacked it down as well. Then I just notched some tube and put it where it fit.

I put it under the jeep where I got the brackets mounted. (sorry no pics) The upper link fits perfect. I got all my links done expect the front upper and the panhard. Im hopin to have this thing on its own wieght by the end of the week (if I can find my missing coils)
wix is offline   Reply With Quote

Old April 7th, 2008   #149
Connect
O||||O

Connect's Avatar

Join Date: 05 Aug 2006
Age: 30
Posts: 3,080
Connect is on a distinguished road
You need brackets?
__________________
58% old school Hardcore

Live FAST, Die BROKE!
Connect is offline   Reply With Quote

Old April 7th, 2008   #150
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 40
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by Connect View Post
You need brackets?
Ya I do! What do you need? templates?
wix is offline   Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -7. The time now is 09:02 PM.

Powered by vBulletin® Version 3.8.4
Copyright ©2000 - 2018, Jelsoft Enterprises Ltd.
User Alert System provided by Advanced User Tagging v3.2.4 (Lite) - vBulletin Mods & Addons Copyright © 2018 DragonByte Technologies Ltd.
TRG 2009
