Old March 12th, 2009   #301
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

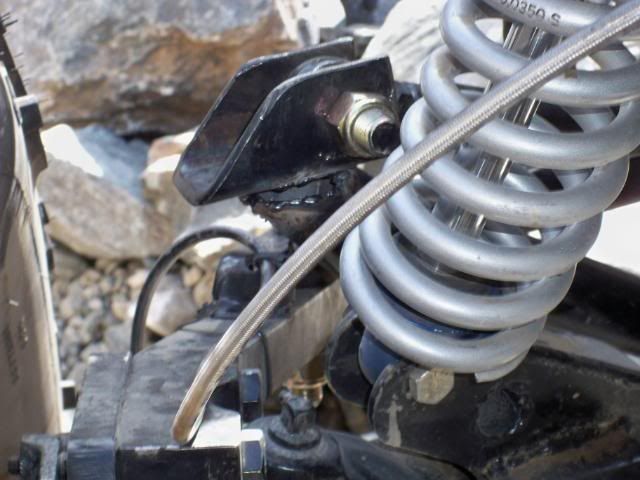

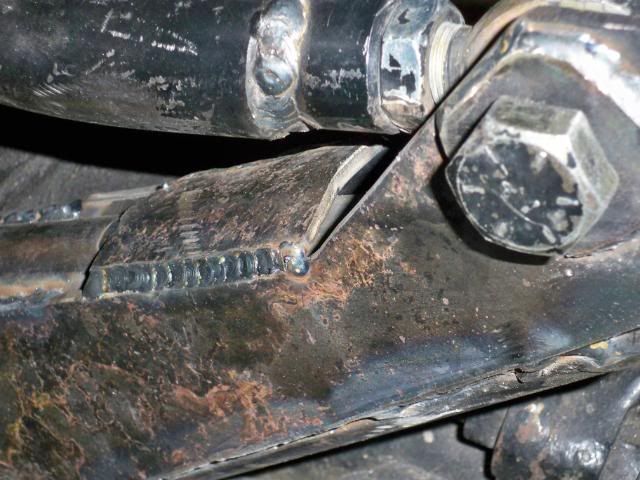

Here's what broke on my 1st trip out.

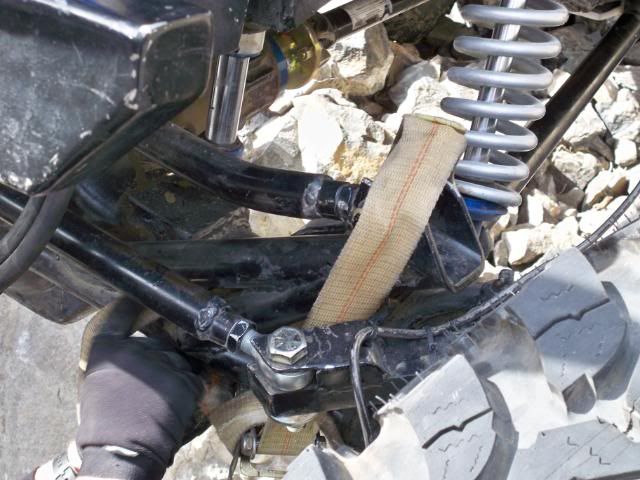

This picture was taken after trying to fix it on the trail. We could not get in there to get a good weld. The reason it broke was it was never welded 100%. I only welded the front of it and could not get to it with the shocks mounted. The front riped the dom right appart. When I took the shocks off I must have completely forgot to finish the weld..

This is how we got it most the way down. It did not hold all the way though. When it broke I had to drive it with no panhard for a little ways...Not a good idea. I damage a bump stop and also was pretty much setting on top of my front d-line...Oh well we got it to a welder to get it back to camp.

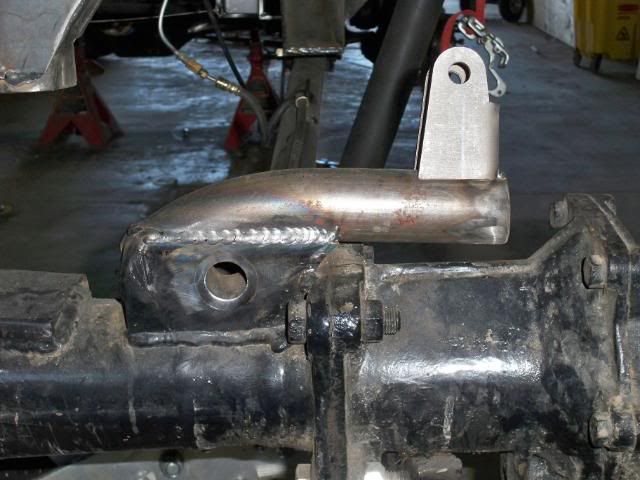

Here is the fix. I threw the old mount out, and beefed up the toob.



I also added some more support on the other end.

It was good taking it out there, I learned alot that I still need to do. Mainly just add some more plates here and there to get it all stronger. I also was having some issues with the motor so Ive replaced the crank position sensor, oil sensor and temp sensor.
Also have an appt. with T-fab this next week to get these shocks tuned right!

Last edited by wix; March 12th, 2009 at 10:29 PM..
wix is offline   Reply With Quote

Old March 12th, 2009   #302
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
Looks much improved over before! Please get some bushings for that panhard joint so its not slopping around in there!
Sierra Valley is offline   Reply With Quote

Old April 13th, 2009   #303
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,988
MR.ROCKAPE is on a distinguished road
ANY UPDATES TO THE "CHARLES BRONSON DEATH WISH JUGGY" ???
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old April 14th, 2009   #304
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
ANY UPDATES TO THE "CHARLES BRONSON DEATH WISH JUGGY" ???
Got all the rear link brackets cut off, and the frame iis all ground down. Also got a bunch of new brackets cut for the bump stops. Then I broke the diffuser on my welder... And now im on vacation in Tuscon. Should be able to get it done in a couple days when I get back.
wix is offline   Reply With Quote

Old April 14th, 2009   #305
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
ANY UPDATES TO THE "CHARLES BRONSON DEATH WISH JUGGY" ???
oh and fyi, I refer to it as the BABY KILLER now
wix is offline   Reply With Quote

Old April 14th, 2009   #306
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,988
MR.ROCKAPE is on a distinguished road
Quote:
Originally Posted by wix View Post
oh and fyi, I refer to it as the BABY KILLER now
IS THAT BECAUSE ITS AS TALL AS A SKY SCRAPER????
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old April 29th, 2009   #307
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

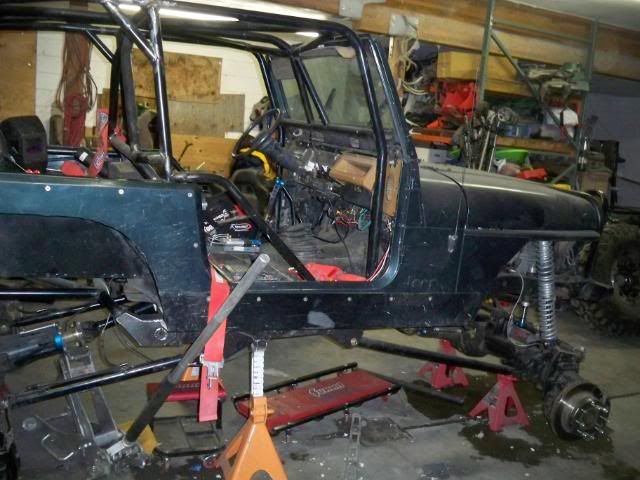

Right now I got this thing all torn apart again. Im woking on lengthing the rear upper link. With the old link my drive line would bind at about 8" of droop. Other things im re-working are the mounts for the bump stop cans, new skid plate, re-route the exhaust again, new seats, clean up a lot of the welding on the cage strengthen the back half, And try to get the full steering that my axles are capable of. So far what I have done.

:frown:

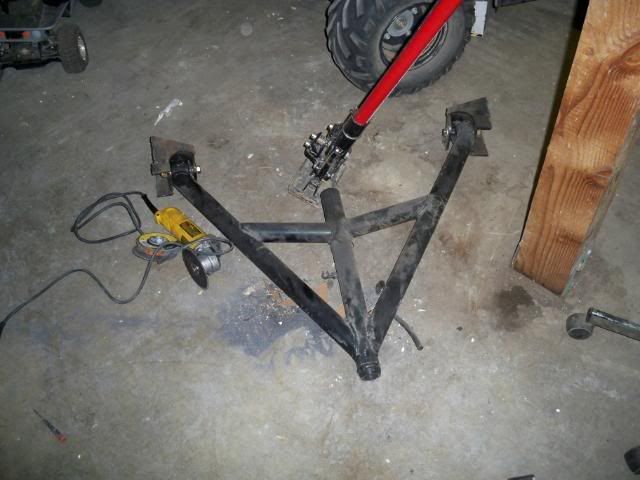

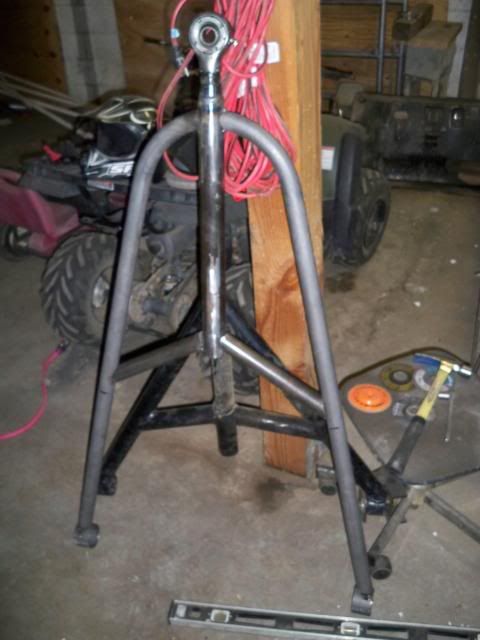

old wish bone...way toooo short. The new one will be about 18" longer.

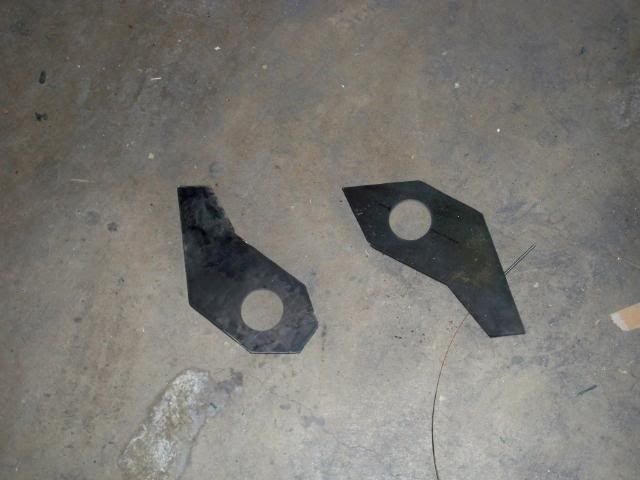

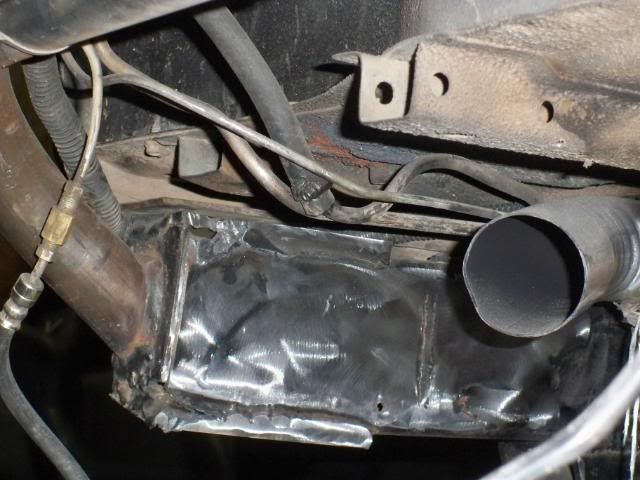

also got all the old link brackets taken off. When I took these off I realised that I really needed to beef up the attachment of the back section.

plates for the frame.

I feel much better about this.
wix is offline   Reply With Quote

Old April 29th, 2009   #308
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

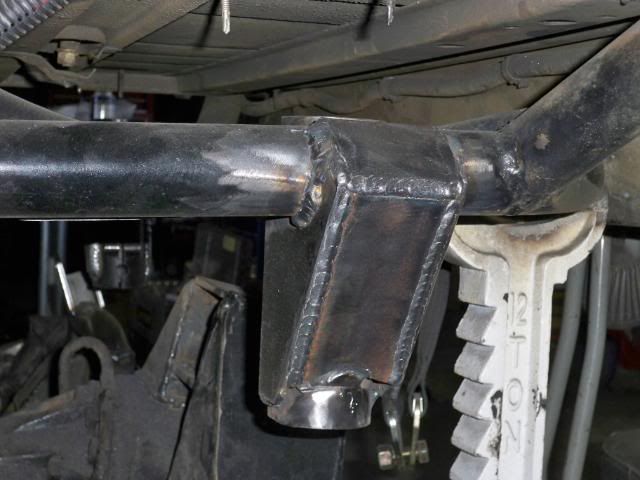

The new bump stop mounts.

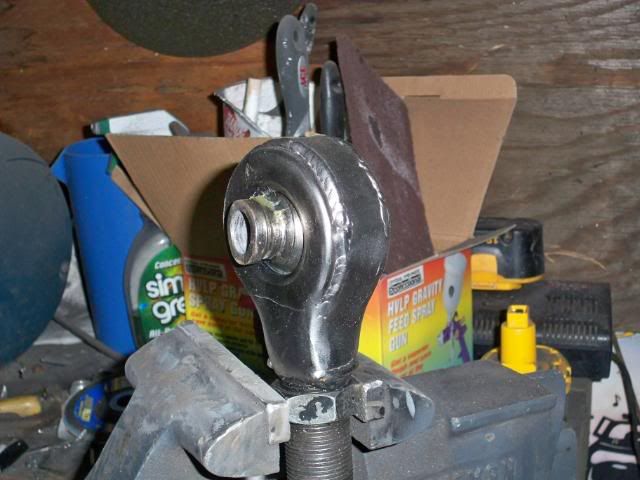

I plan on using the old RE joint I had in the old wish bone, but I wanted to beef it up a bit.
wraped it with some 1/8" steel and sleeved the the upper inch of thread with some 1.5" dom.

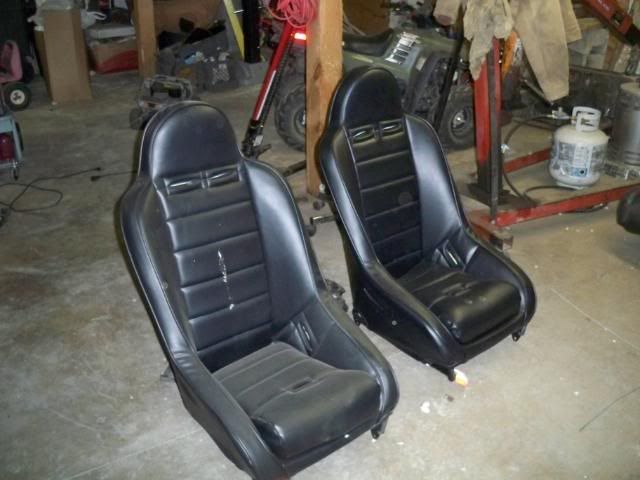

New seats, went with prp.

Took this thing into tfab a month or so ago. Im glad I did. It was a real eye opener. Big Thanks to Derek and Taylor for pointing out the many things that needed to be corrected!
wix is offline   Reply With Quote

Old April 29th, 2009   #309
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,988
MR.ROCKAPE is on a distinguished road
Quote:
Originally Posted by wix View Post
Took this thing into tfab a month or so ago. Im glad I did. It was a real eye opener. Big Thanks to Derek and Taylor for pointing out the many things that needed to be corrected!
im pretty sure its "TATER".....just for an FYI!!!!:66:

AND YOU BETTER GET TO GET'N...YOU ARE GONNA MISS OUT ON ALL THE RUNS THAT JESSE PLANS THAT IS SCARE'N NIGS STRAIGHT OUTTA THE SPORT!!!!
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old April 29th, 2009   #310
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
im pretty sure its "TATER".....just for an FYI!!!!:66:

AND YOU BETTER GET TO GET'N...YOU ARE GONNA MISS OUT ON ALL THE RUNS THAT JESSE PLANS THAT IS SCARE'N NIGS STRAIGHT OUTTA THE SPORT!!!!
Wouldnt be able to make any of the runs anyway...All of May my saturdays are full with little league...
wix is offline   Reply With Quote

Old May 8th, 2009   #311
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
More progress.

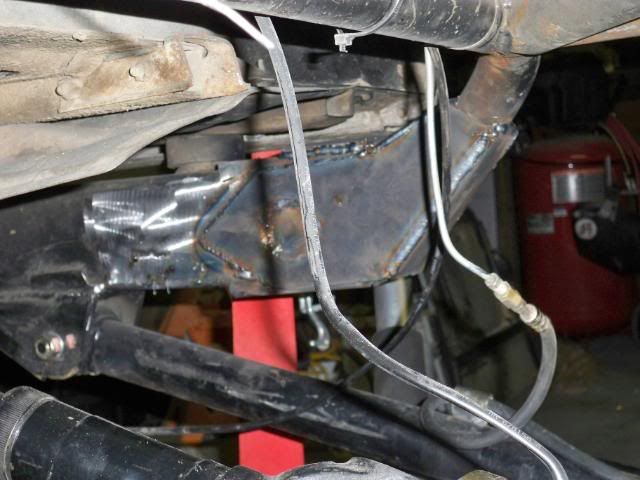

Got the other side of the frame done, including the bump stop mounts.

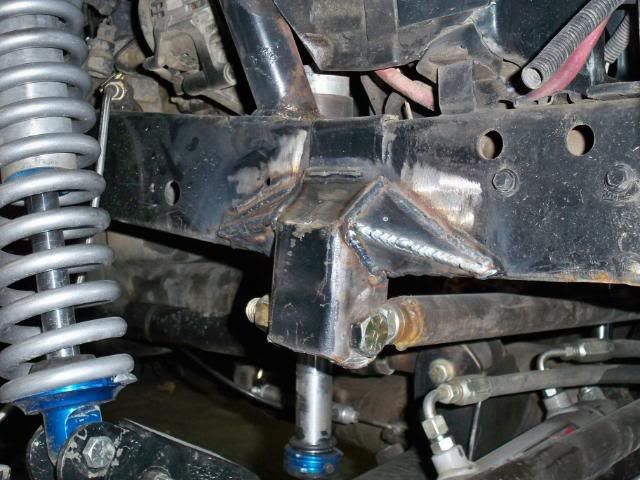

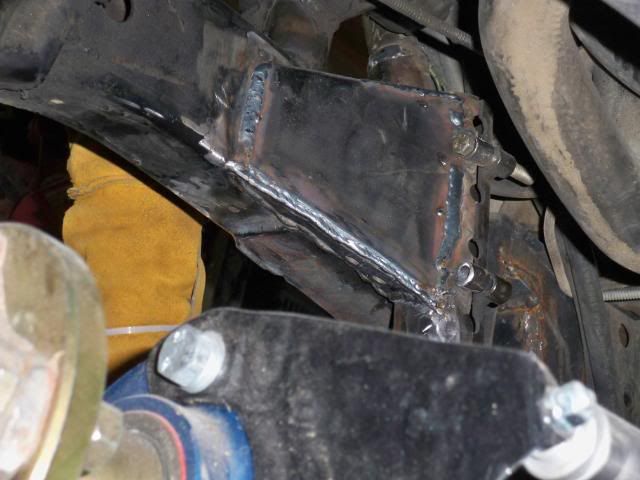

The new front bump stop mounts.

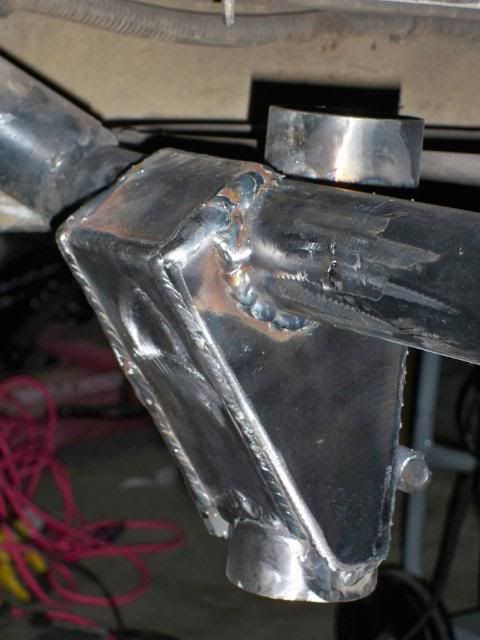

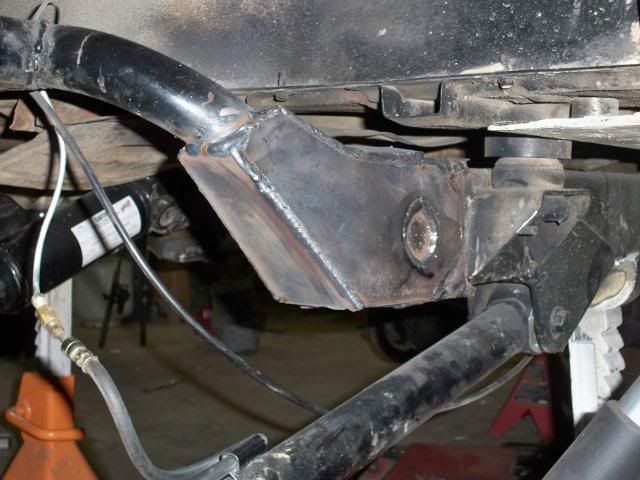

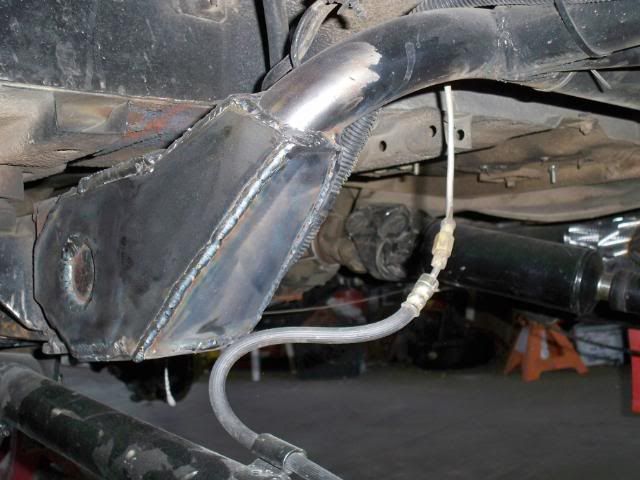

Here's how I did the new rear shock mounts. Its 1.75" 1.20 wall sleved with 1.5" 1.20 wall. The more I look at it the more I hate it...Gonna cut it all off and try somthing else. Kinda shitty that the section where I need to put the shock mounts is cast and I dont want to chance welding to it...yet.

Here's the new upper link compared to the old one.

Also got the brackets on the frame for the new upper. All I have left to do is weld up the upper link, install it and redo the shock mounts. I may also make a new skid plate. Oh yeah and put the new seats in.

Last edited by wix; May 8th, 2009 at 10:26 PM..
wix is offline   Reply With Quote

Old May 8th, 2009   #312
Sierra Valley
HARDCORE WEB WHEELER!!!

Sierra Valley's Avatar

Join Date: 05 Aug 2006
Posts: 3,745
Sierra Valley is on a distinguished road
Weld a hoop to from the cast to the steel and gusset the shit out of it. Run it and see if it works. Whens this going to be put back together?
Sierra Valley is offline   Reply With Quote

Old May 9th, 2009   #313
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by Sierra Valley View Post
Weld a hoop to from the cast to the steel and gusset the shit out of it. Run it and see if it works. Whens this going to be put back together?
If I did that I wouldnt be able to pull the axles apart if needed. I think im going to make a bolt on shock mount. Going to have two tabs (one on each side of the cast) and use the bolts that hold the axle housing to the cast section and the bolts that hold the portal box to the cast section. Then weld a "bridge" across the cast with the shock mount on it. Seen it done before.

Should start putting it back to together after this weekend.

Last edited by wix; May 9th, 2009 at 04:50 PM..
wix is offline   Reply With Quote

Old May 9th, 2009   #314
BIG BLUE
Local shit talker

BIG BLUE's Avatar

Join Date: 04 Aug 2006
Age: 45
Posts: 5,430
BIG BLUE is on a distinguished road
wholly crap your worse than me one trip and you completely cut everything apart...but your doing a nice job. its looking good those rear shock mounts do look different thats for sure..
__________________
I always have the ability to say something to offend someone somewhere.

It's people like you that make me look smart.

I am very sensative to a womans needs...thats why I always buy them kneepads!

Don't you know who I think I am!!!!!
BIG BLUE is offline   Reply With Quote

Old May 29th, 2009   #315
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

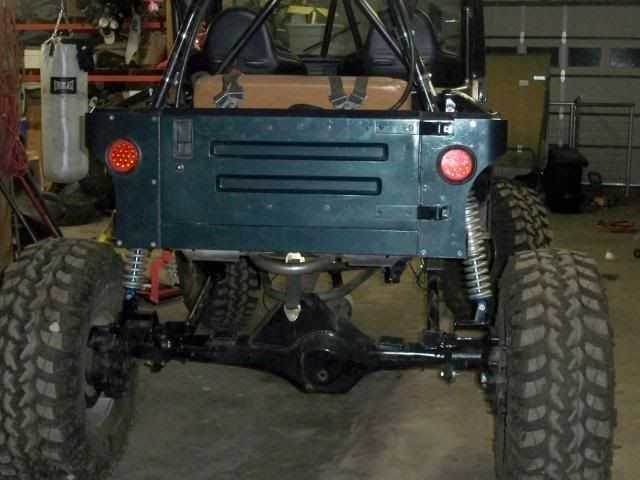

Pretty much got the rear suspension all done.


At full stuff.




Then hacked off those toob shock mounts. Realy glad I never ran it this way...
Cut some welds then wacked a few times with the hammer.


The new mounts.
wix is offline   Reply With Quote

Old June 7th, 2009   #316
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

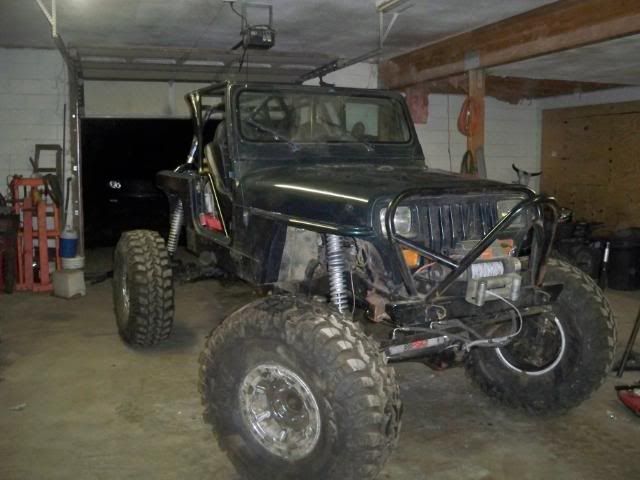

Got the shocks and wheels on.

I ended up taking an inch off of those shock mounting tabs. Tring to get inches where ever I can...

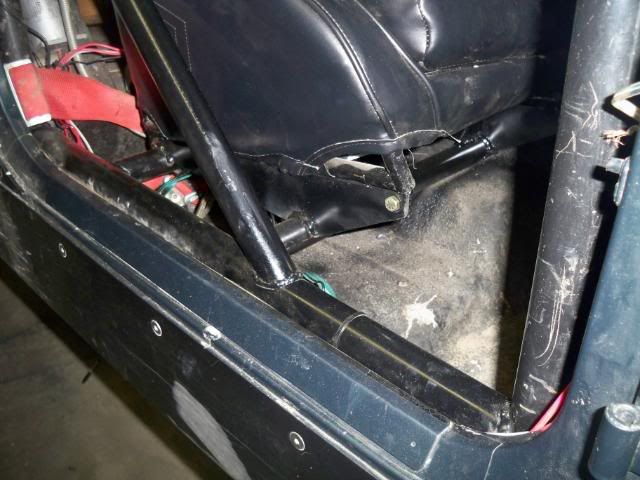

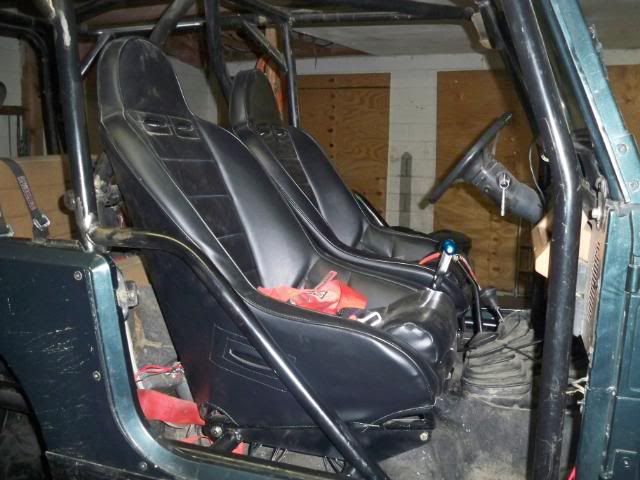

New seats mounted

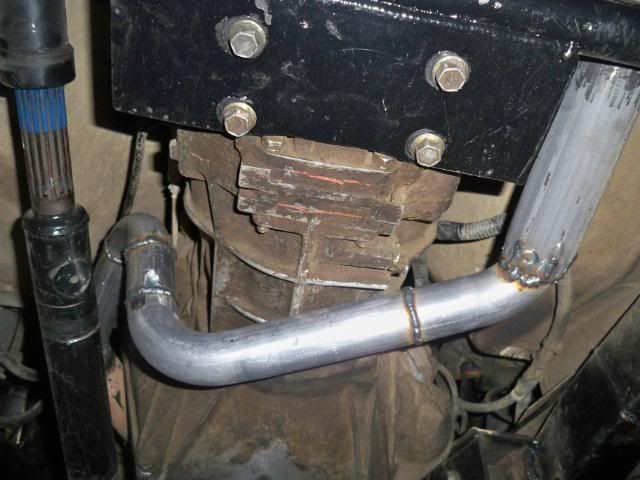

Also re-routed the exhaust again.


Was able to drive it down the dirt roads today and play on some rocks.

Bad news is Im gonna have to pull the shocks again...Im gonna add some helper coils and change the spring rate in the rear. I also ordered some different steering arms too so gonna have to re-do that as well.
I took the stock steering pump out and put the re-built PSC pump back in. Huge difference, the PSC is alot louder though, I havent really messed with the belt much. Hopefully I can get rid of the noise by loosening it bit?
wix is offline   Reply With Quote

Old June 8th, 2009   #317
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,988
MR.ROCKAPE is on a distinguished road
USUALLY THE PUMPS ARE NOISEY BECAUSE THEY ARE SUCKING AIR OR THERE ISNT ENOUGH FLOW TO THEM......IS YOUR RESIVIOR ABOVE THE PUMP???
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old June 8th, 2009   #318
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
USUALLY THE PUMPS ARE NOISEY BECAUSE THEY ARE SUCKING AIR OR THERE ISNT ENOUGH FLOW TO THEM......IS YOUR RESIVIOR ABOVE THE PUMP???
The pump is below the res. But I had to make a new hose and I think the diameter is a little smaller and the hose is a lot longer it also travels up about mid res height and then returns back down. Im thinkin thats the problem. Thanks, never thought about that. Guess Ill get another hose tomarrow...
wix is offline   Reply With Quote

Old June 12th, 2009   #319
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
It was the hose. I changed it out for one with no bends and whole lot shorter. What a huge difference. Also the PSC pump is HUGE improvement over the stock one.
wix is offline   Reply With Quote

Old November 12th, 2015   #320
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
2009 since I last posted on this tread?!?!
Here's some of the latest things I've been working on.
Pulled the entire drive train last winter, that escalated quickly into a project that I have been struggling to find the time to finish...but its fun I guess.






Going with a tci th350 with a winters shifter and an atlas 4 speed.

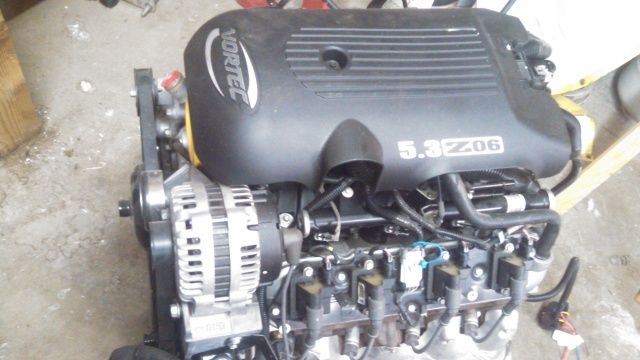

And the new motor, 5.3 with z06 cam from Bryan.


Last edited by wix; November 12th, 2015 at 02:06 PM..
wix is offline   Reply With Quote

Old November 12th, 2015   #321
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Escalating!





wix is offline   Reply With Quote

Old November 12th, 2015   #322
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
The new motor and old 404's would not work without moving the center section, so...new housings!

Building MOG9s now... Yukon 3rds. 31 spline, spooled with 3.0 gears. UPSIDE DOWN :p


Rear

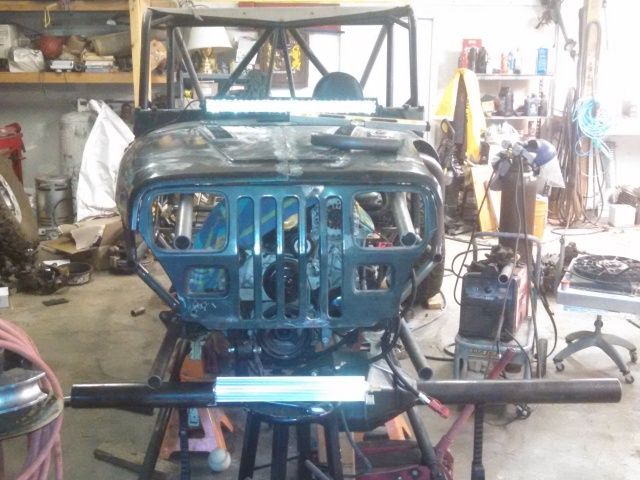

Narrowed hood, cowl, and grille 6". After all the work Ill probably look for a new cowl and hood, they are pretty beat up.

wix is offline   Reply With Quote

Old November 12th, 2015   #323
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

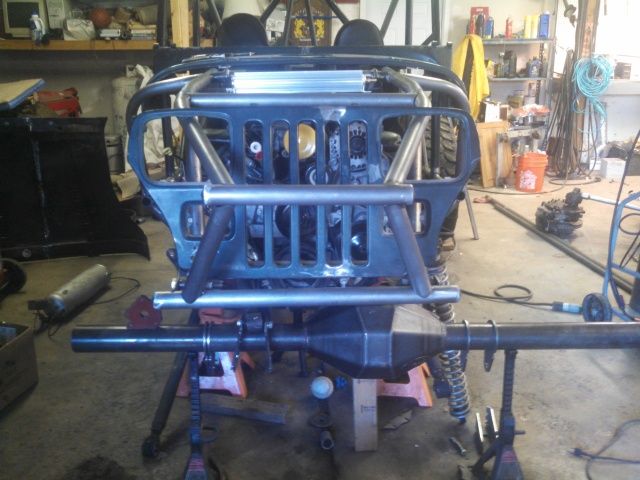

Front

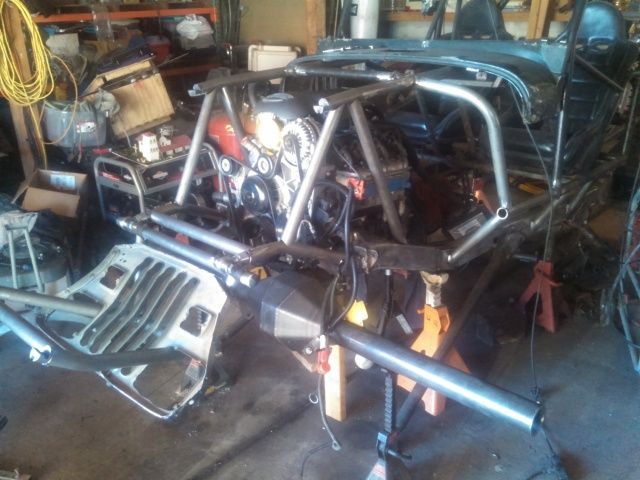

Winch will mount behind the gril and the radiator will go in the back.


And to have easy access to the motor...

wix is offline   Reply With Quote

Old November 12th, 2015   #324
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

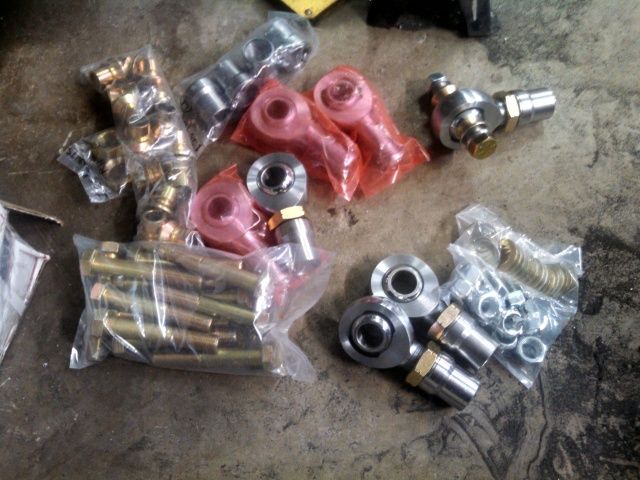

New hardware from ruffstuff.

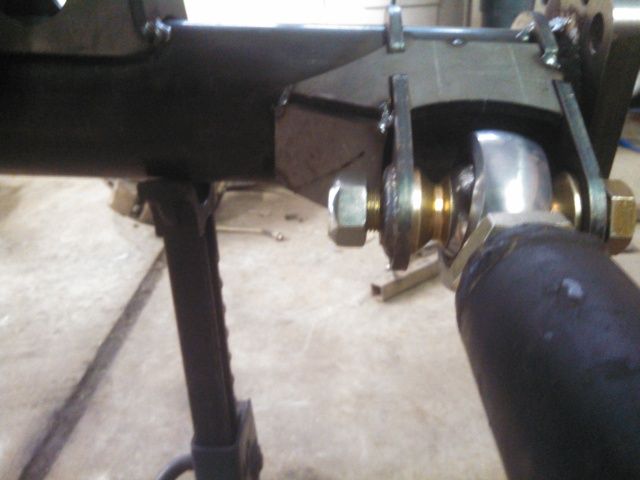

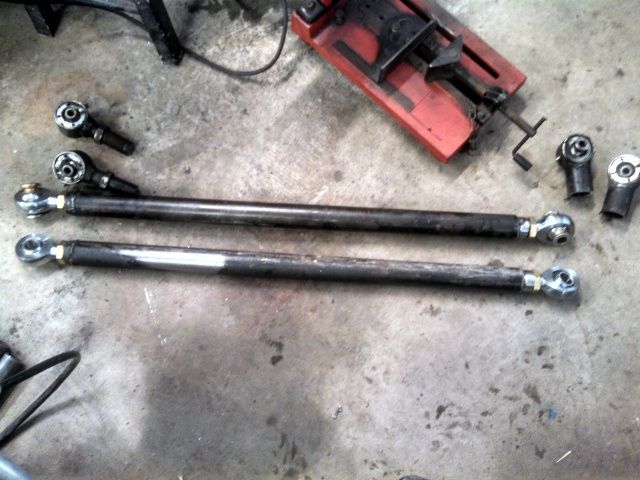

Going to change out all my RE joints for hiems. The RE joints have worked OK...only problems I've had is having to pull the links every other trip or so to tighten them up, they get sloppy quick! I've also sheered 3 of the 5/8ths bolts on my front lowers and upper. So going with the Big hiems everywhere, except at the rear upper frame.



Out with the old...
Also made them a bit shorter. The 115" wheel base doesn't work as well as I thought on the trails we hit around here. Gonna be around 110" now.

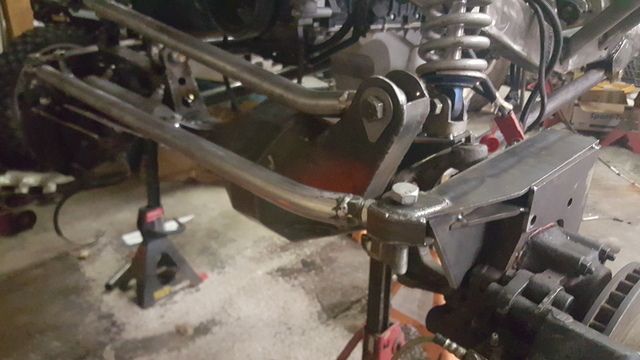

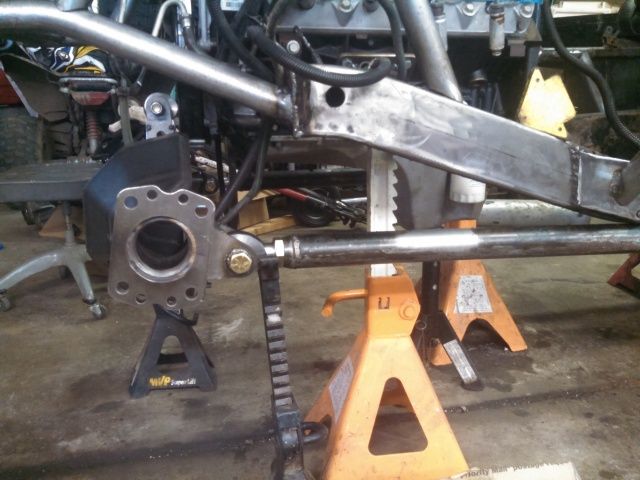

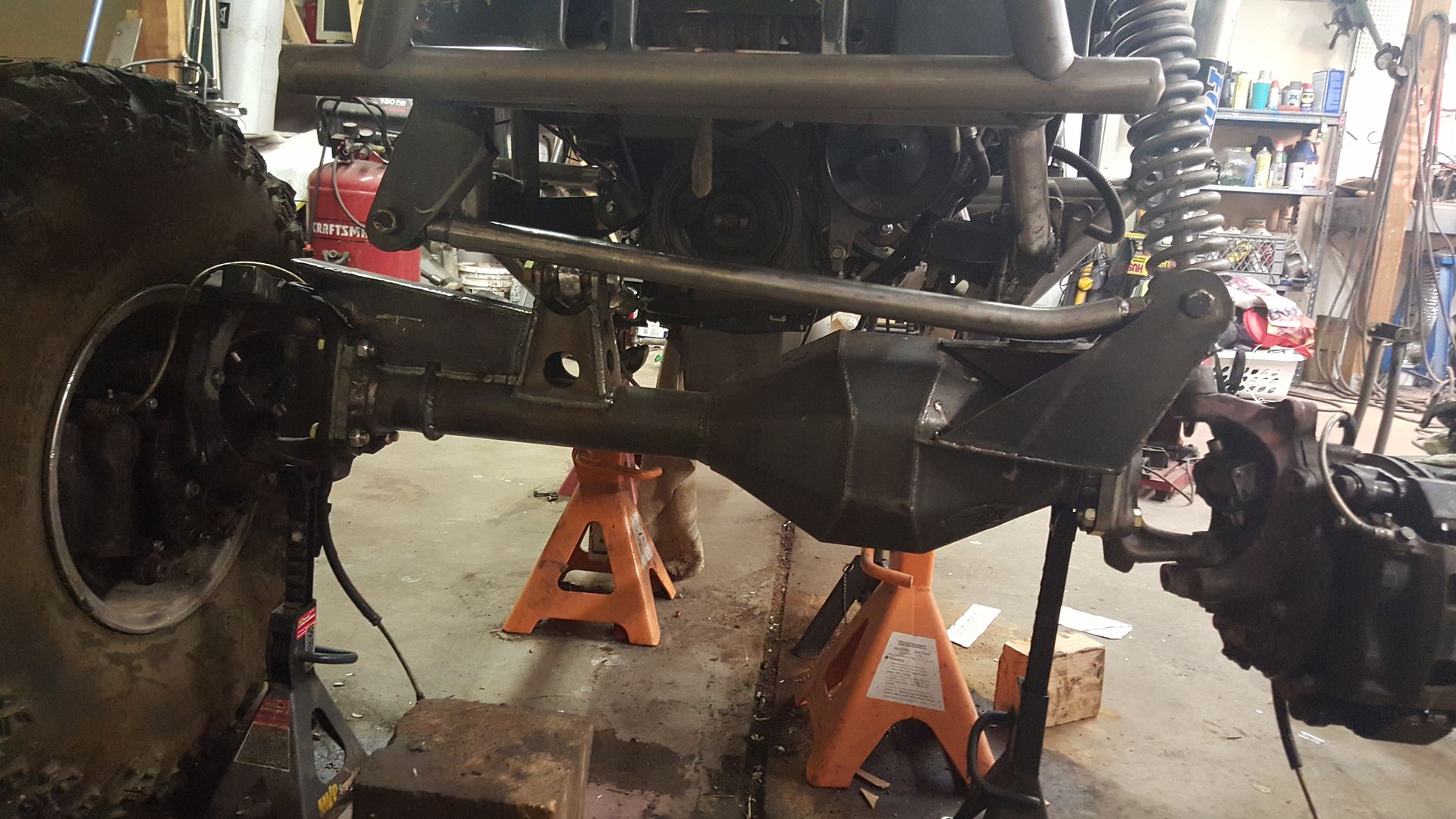

Front axle cut up and in place! Going to be 7" narrower than the old stock 404.


Full stuff

Flanges are from branik. They will take some work to get the 404 knuckle to bolt up....

Brackets from ruffstuff.

Last edited by wix; November 12th, 2015 at 02:25 PM..
wix is offline   Reply With Quote

Old November 12th, 2015   #325
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road

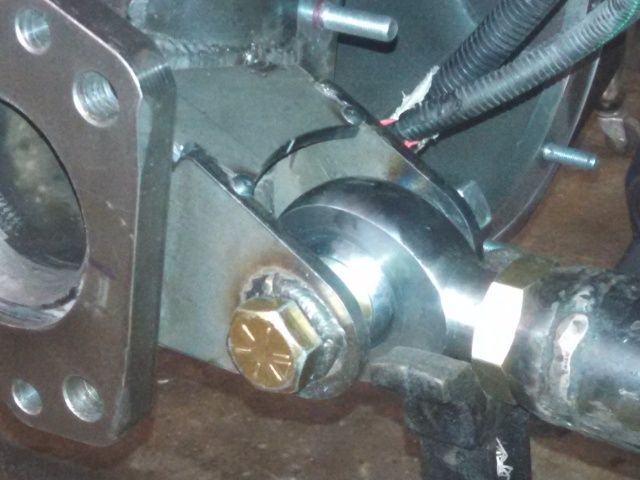

Had to make some spacers plates to make the Branik Flanges work with the 404 knuckles... Not sure why he sells them like this but what ever they work now...


Radiator going in the back.


Front shocks!



Last edited by wix; November 12th, 2015 at 02:16 PM..
wix is offline   Reply With Quote

Old November 12th, 2015   #326
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,988
MR.ROCKAPE is on a distinguished road
You arent far from a full buggy chassis now! Are you keeping the same wheels? Whats the width being 7" narrower?
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old November 12th, 2015   #327
voodoo
Wheeler

Join Date: 11 Dec 2008
Posts: 320
voodoo is on a distinguished road
Looking great. Can't wait to see that thing on the trail. We need to do another Hammers trip next year!
voodoo is offline   Reply With Quote

Old November 12th, 2015   #328
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by MR.ROCKAPE View Post
You arent far from a full buggy chassis now! Are you keeping the same wheels? Whats the width being 7" narrower?
It will be 85" (outside tires) wms 71". Plan on using the same h2 wheels for now (5.5 bs). Before I was closer to 94"!! So 85 is still wide but huge improvement, and turned out to be more than 7".

Last edited by wix; November 12th, 2015 at 09:44 PM..
wix is offline   Reply With Quote

Old November 12th, 2015   #329
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Quote:
Originally Posted by voodoo View Post
Looking great. Can't wait to see that thing on the trail. We need to do another Hammers trip next year!
Thanks and a hammers trip is definitely needed!!
wix is offline   Reply With Quote

Old November 30th, 2015   #330
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Made some more progress.

Rear truss


Rear shocks on, made a shroud and put fan on.



Sitting on its own weight now, not on tires yet but axles are about where they would be with 42's. should be just under 80" to top of cage...




Going to summit today to pick up everything I need to start the fuel system and exhaust. Starting to see a possibility of having this thing done by spring!!

Last edited by wix; November 30th, 2015 at 02:07 PM..
wix is offline   Reply With Quote

Old November 30th, 2015   #331
Bryand
RockGods Member

Bryand's Avatar

Join Date: 18 Feb 2007
Posts: 2,343
Bryand is on a distinguished road
Keep up the hard work! Yeah, hopefully you can see the light at the end of the tunnel soon.
__________________
Bryan Dacus
BD Turnkey Engines
bdturnkeyengines.com
Bryand is offline   Reply With Quote

Old March 21st, 2016   #332
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Been putting in lots of hours on this...not much for pictures...

After going into summit and hose & fittings about everyday I got all the plumbing done and 95% of the wiring done and the exhaust is finished! Also got most of the aluminum for the interior done.

Its pretty tight for me...this gives me a few more inches. Now my knees have clearance.


Interior


One from the back


Made my steering arms, this was a huge pain in the ass. Made with a mix of 3/8th" & 1/4" material



It runs now too!!
https://youtu.be/dR12HBX6eGQ

Last night I started to tear it all back down to weld and paint. Still just need to order the custom axle shafts...and have d-lines made, some things that are going to take $$$$.
wix is offline   Reply With Quote

Old March 22nd, 2016   #333
deadandcompany
HARDCORE WEB WHEELER!!!

Join Date: 05 Aug 2006
Age: 36
Posts: 508
deadandcompany is on a distinguished road
Looks great dude!
deadandcompany is offline   Reply With Quote

Old March 24th, 2016   #334
MR.ROCKAPE
BANNED

MR.ROCKAPE's Avatar

Join Date: 04 Aug 2006
Age: 14
Posts: 12,988
MR.ROCKAPE is on a distinguished road
Quote:
Originally Posted by deadandcompany View Post
Looks great dude!
Didnt he buy those axles from you? I totally tried to talk him out of it!

80" to the top of the cage...how much uptravel?
__________________
PROOF!!! THAT TALKIN SH!T ON THE INTERWEB CAN MAKE ME FAMOUS!!!!

MY VIDEO!!!--->ITS NEW!!!!
http://www.youtube.com/watch?v=vNVguvNE7qc

Quote:
Originally Posted by Lance View Post
Time and time again you prove you are the biggest idiot on Pirate4x4. God you're a fucking clown.
MR.ROCKAPE is offline   Reply With Quote

Old March 25th, 2016   #335
deadandcompany
HARDCORE WEB WHEELER!!!

Join Date: 05 Aug 2006
Age: 36
Posts: 508
deadandcompany is on a distinguished road
Not the Spider housings but I think the Mogs he got from me 10 years ago!!
deadandcompany is offline   Reply With Quote

Old March 25th, 2016   #336
wix
Hella sweet

wix's Avatar

Join Date: 06 Aug 2006
Age: 41
Posts: 2,016
wix is on a distinguished road
Yeah bought the mogs from arron!
Made some adjustments on the rear shock mounts and got the height down to 78". With 6" up travel in front and 7" back. Plenty of head room too. I'm almost 6'4" and I have 4-5" of head room. 25" belly clearance.
wix is offline   Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -7. The time now is 01:22 AM.

Powered by vBulletin® Version 3.8.4
Copyright ©2000 - 2018, Jelsoft Enterprises Ltd.
User Alert System provided by Advanced User Tagging v3.2.4 (Lite) - vBulletin Mods & Addons Copyright © 2018 DragonByte Technologies Ltd.
TRG 2009
